40Ton Span 22.5M European Style Double Girder Overhead Crane End Carriage

40Ton Span 22.5M European Style Double Girder Overhead Crane End Carriage

MOQ: one set
Price: USD3000~10000 one set
Standard Packaging: Wooden Box Packaging
Delivery Period: 20 Working Days
Payment Method: MoneyGram, Western Union, T/T, D/P, D/A
Supply Capacity: 1000 Sets One Year
Detail Information
Place of Origin
China
Brand Name
kiwicrane
Certification
ISO、CE
Model Number
UD
Model:
UD250L-16E
Max. Lifting Load:
40T
Traveling Speed:
20~40m/min
Condition:
New
Warranty:
1 Year
Span:
22.5M
Product Name:
End Carriage
Power Source::
3 Phase 220/380V/415/440V 50/60Hz
Color:
Yellow Or Customized
Wheel Size:
250mm
Motor Power:
FA77-3.0kW*2
Applicable:
Double Girder Overhead Crane
Product Description

40Ton Span 22.5M European Style Double Girder Overhead Crane End Carriage



Technical Parameters:



Drive System Standard three-phase asynchronous motor + hardened tooth surface reducer
End Beam Design Open tooth transmission with gear-rack meshing drive
Applicable Main Beam Span 22.5 meters
Safety Protection Limit switch, buffer device, overload protection
Warranty 12 Months
Braking Device Normally closed electromagnetic brake for automatic locking
Condition New
Wheel Set Equipped with cast steel wheels, adapted to QU-type tracks
Carrying Capacity 40tons, suitable for medium industrial scenarios
Adaptability High-strength bolt connection with the main beam, expandable configuration





1. Lightweight and compact design (core European features):

High-strength materials: A large amount of high-strength steel is used, which significantly reduces the weight of the end beam itself while ensuring the load-bearing capacity and rigidity.

Optimized structure: The end beam structure is optimized by finite element analysis, and a reasonable box beam or combined beam structure is adopted to avoid redundant materials and achieve a compact volume.

Small wheel diameter: European designs tend to use wheels with relatively small diameters (but still meet the wheel pressure requirements), which reduces the overall height and weight of the end beam.

Compact drive unit: A highly integrated "three-in-one" drive mechanism is adopted, which is compact.

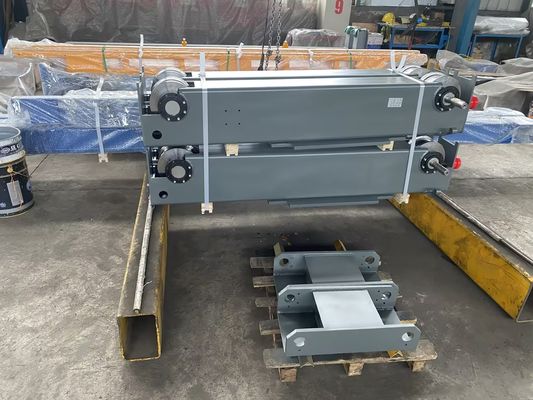

40Ton Span 22.5M European Style Double Girder Overhead Crane End Carriage 0

2. Highly integrated "three-in-one" drive mechanism:

Integrated design: The drive motor, brake and reducer are highly integrated into a compact drive unit module. This is one of the most iconic features of the European end beam.

Advantages:

Easy installation and maintenance: Overall disassembly and assembly, quick on-site installation and commissioning, and convenient later maintenance and replacement.

Space saving: Greatly reduces the space occupied by the drive part in the end beam.

Reliable performance: The mature three-in-one unit produced by professional manufacturers has good matching and runs smoothly and reliably.

Reduced components: The traditional open gears, long drive shafts, couplings and other intermediate transmission links are eliminated, reducing the failure points.

40Ton Span 22.5M European Style Double Girder Overhead Crane End Carriage 1

3. Optimized wheel arrangement and load:

Double-wheel or four-wheel design: For larger tonnages such as 40 tons, the end beam usually adopts a double-flange wheel x 2 sets (a total of 4 wheels) design, or even an 8-wheel design (two balancing trolleys on each side, two wheels on each trolley). This can effectively disperse the wheel pressure, adapt to larger tonnage loads, reduce the pressure on the track, and reduce the cost requirements of the track and foundation.

High-strength wheels and bearings: The wheels are made of high-quality cast steel or forged steel, and the surface is quenched to improve wear resistance and load-bearing capacity. Bearings usually use heavy-duty spherical roller bearings, which can withstand large loads and allow a certain amount of track installation errors.

Angular bearing box: The wheels are usually installed in angular (or square) bearing boxes, which are convenient for adjusting the horizontal and vertical deflection of the wheels, ensuring good contact between the wheels and the rails and reducing the phenomenon of gnawing the rails.

40Ton Span 22.5M European Style Double Girder Overhead Crane End Carriage 2

4. Strong and stable box beam structure:

The main body of the end beam is usually a closed box structure welded from steel plates, which has excellent bending and torsional rigidity, can effectively withstand various dynamic loads during crane operation (especially the horizontal inertia force when the trolley starts and brakes) and the torque generated by possible skew operation, ensuring the stability and operation accuracy of the whole machine.
