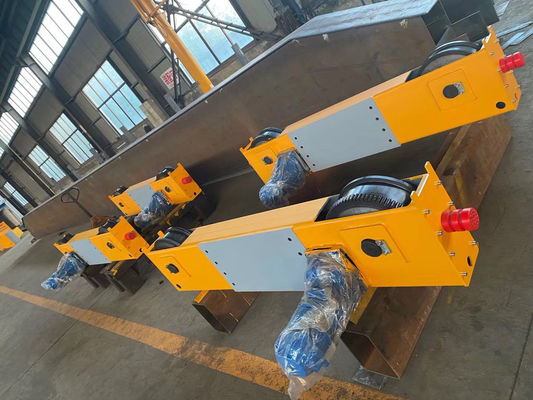

European Style Double Girder Overhead Crane End Carriage 80Ton Workshop

MOQ: one set
Price: USD3000~10000 one set
Standard Packaging: Wooden Box Packaging
Delivery Period: 20 Working Days
Payment Method: MoneyGram, Western Union, T/T, D/P, D/A
Supply Capacity: 1000 Sets One Year
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
kiwicrane
Certification
ISO、CE
Model Number
UD
Model:
UD400L-16S
Max. Lifting Load:
80T
Traveling Speed:
20~40m/min
Condition:
New
Warranty:
1 Year
Span:
7.5-28.5M
Product Name:
End Carriage
Power Source::
3 Phase 220/380V/415/440V 50/60Hz
Color:
Yellow Or Customized
Wheel Size:
400mm
Motor Power:
FA77-3.0kW*4
Applicable:
Double Girder Overhead Crane
Product Description

European Style Double Girder Overhead Crane End Carriage 80Ton Workshop

Drive System Standard three-phase asynchronous motor + hardened tooth surface reducer
End Beam Design Open tooth transmission with gear-rack meshing drive
Applicable Main Beam Span 7.5-28.5 meters
Safety Protection Limit switch, buffer device, overload protection
Warranty 12 Months
Braking Device Normally closed electromagnetic brake for automatic locking
Condition New
Wheel Set Equipped with cast steel wheels, adapted to QU-type tracks
Carrying Capacity 80tons, suitable for medium industrial scenarios
Adaptability High-strength bolt connection with the main beam, expandable configuration





1. Heavy-duty angled bearing housing and precision adjustment:

The wheel set uses a heavy-duty, enlarged angled (or square) bearing housing to accommodate larger spherical roller bearings.

Equipped with a more precise horizontal deflection adjustment shim set and vertical adjustment device to ensure that the parallelism, verticality and horizontal deflection of all wheels (especially in multi-wheel trolley systems) are controlled within an extremely strict range, which is the key to ensuring smooth operation, low wear and no rail gnawing.



2. Enhanced safety protection device:

Larger capacity buffer: Heavy-duty hydraulic buffers or ultra-large capacity polyurethane buffers are installed at both ends of the end beam to absorb the huge kinetic energy when the 63-ton crane runs at high speed to the end of the track.

Redundant travel limit: Usually equipped with two-level (working limit + emergency limit) or even three-level trolley travel limit switches.

Enhanced anti-collision system: More likely to be equipped with an active anti-collision system based on laser, radar or encoder for detection and deceleration/stop control of multiple cranes or fixed obstacles in the same span.

Stronger track sweeping plates and guardrails.



3. Ultra-high precision manufacturing and installation:

The overall processing of the end beam (especially the flange surface connected to the main beam) requires higher precision to ensure the horizontality and span accuracy of the main beam after installation.

The centering of the wheel group of the multi-wheeled balancing trolley and the horizontal adjustment of the trolley frame are the key difficulties in installation and commissioning, which require professional tools and rich experience to ensure that all wheels are evenly loaded and run synchronously.



4. Modularity and maintainability:

Although the structure is more complex (especially with a balancing trolley), the design still strives for modularity: the drive unit, a single balancing trolley, the wheel group, etc. can be replaced as a module as a whole to reduce downtime.

Provide sufficient maintenance channels and hanging points.
