DRS 125mm To 400mm Traveling Wheel Block With Drive Geared Motor
  • Name
  • Name
  • Name
  • Name
  • Name
  • Name

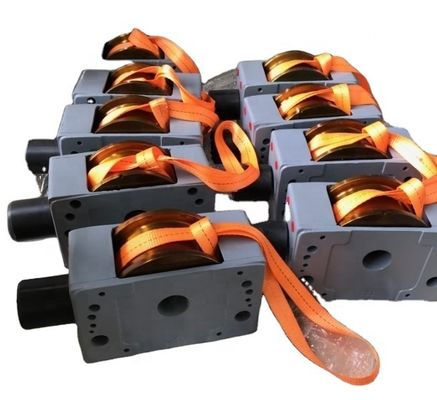

DRS 125mm To 400mm Traveling Wheel Block With Drive Geared Motor

MOQ: 1
Price: USD150-5000 one pcs
Standard Packaging: wooden case
Delivery Period: 15days
Payment Method: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Capacity: 1000pc one year
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
kiwicranes
Certification
ISO,CE
Model Number
DRS
Product:
Wheel Block
Size:
DRS125-DRS400
Wheel Material:
42CrMo
Traveling Speed:
10/20/30/40m/min
Color:
Grey
Application:
Transmission Mechanism
Case Material:
Cast Iron
Installation Method:
Side Or Top
Highlight:

400mm Wheel Block

,

Traveling Wheel Block

,

125mm automotive wheel chocks

Product Description

                                       DRS wheel block system

we making DRS wheel block system from 125mm to 400mm, suitable for loads up to
200000 kg, is designed as a heavy-duty travel unit based on the same principle
Features:
• Most favourable ground clearance conditions with offset or angular geared motors.
• A robust travel wheel in material of 42CrMo with double flange,single flange or flat wheel.
• Variable basic design by fitting various travel wheel materials and shapes.
• Protected internal bearing arrangement featuring tapered-roller bearings.
• Minimum maintenance due to bearings lubricated for life with standard ambient conditions.
• High wearing resistance bearings are rugged, wearable and rolling easier.
• Travel wheel and bearings can be replaced thanks to bolted housing.
• High installation availability since the housing with top connection does not necessarily
need to be removed to replace the travel wheel.
• Travel wheel with flange on both sides,one side or without flange.
• German drive SEW and NORD are optional.

Tags:

car wheel blocks,

wheel block,

vehicle chock blocks
