250kg 3m Double Speed Electric Chain Hoist With Motorized Trolley

Products

Crane Wheel

Mr. Chen

kw30@kiwicrane.com

86-551-67753801

Contact Now

250kg 3m Double Speed Electric Chain Hoist With Motorized Trolley

MOQ:	1
Price:	USD1,000~3,000 one set
Standard Packaging:	crates
Delivery Period:	8working days
Payment Method:	D/P,D/A,T/T,Western Union
Supply Capacity:	1000sets one year

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

kiwicranes

Certification

CE/ISO

Model Number

DMG

Lifting Capacity:

250kg

Standard Height:

3 M

Application:

Electric Chain Hoist

Insulation Grade:

Chain Dia:

6.3mm

Chain:

FEC Chain

Condition:

New

Lifting Chain:

G80

Lift Height:

8/2m/min

Hoist Duty Class:

Highlight:

3m Electric Chain Hoist

250kg Electric Chain Hoist

Double Speed electric chain hoist 250kg

Product Description

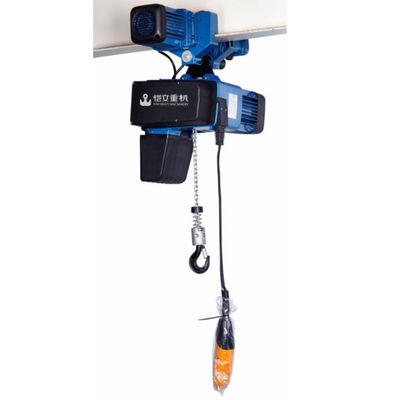

Double Speed Electric Chain Hoist 250kg 3m With Motorized Trolley

DMG Type Electric Chain Hoist Brief Description

The housing is a reinforced, lightweight cast aluminum housing.

Hoisting motor: A high-performance motor with a large safety reserve even at high ambient temperatures and long operating times.

The use of 2 lifting speeds with a 1:4 ratio and frequency conversion control can meet multi-speed requirements.

Chain drive: The device is a complete assembly consisting of chain and chain drive, which facilitates quick and easy replacement of the entire chain drive without disassembling the motor or gear components. The chain drive is made of highly wear-resistant materials and has a long service life.

Chain collection box: Suspended by a pivot connection, made of tough, flexible and particularly impact-resistant plastic.

Bottom hook: Forged, high strength, the hook can rotate 360 degrees, and the specially designed safety latch ensures safe operation.

Optional VFD Control: Smooth acceleration/deceleration for sensitive loads.

Electric Trolley

Endurance-tested bearings for smooth movement.

Adjustable wheel gap to fit different beam widths (e.g., 100–300mm).

Control Options:

Pendant control (standard) or radio remote control (optional).

Limit switches for automatic travel stop at beam ends.

Protection & Durability:

IP54 / IP55 protection against dust and moisture.

Overload protection for motor safety.

250kg 3m Double Speed Electric Chain Hoist With Motorized Trolley 0

lifting capacity	250
lifting height	3m
lifting speed	8/2m/min
lifting motor	0.4/0.12kW
travel speed	2m/min
travel motor	0.4kW
power in	3phase 220-440V 50/60Hz
control	24/36/48V
