5ton 9m European style single girder wire rope hoist

MOQ:	one set
Price:	USD1,000-5,000
Standard Packaging:	Wooden Box Packaging
Delivery Period:	20 Working Days
Payment Method:	MoneyGram, Western Union, T/T, D/P, D/A
Supply Capacity:	1000 Sets One Year

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

kiwicrane

Certification

ISO、CE

Model Number

VTS

Lifting Capacity:

5000KG

Lifting Height:

Power:

220-460V 50/60hz 3 Phase

Warranty:

1 Year

Production Name:

European Style Single Beam Electric Wire Rope Hoist 5T 9M

Usage:

Construction Hoist,Mining Hoist,Bridge Crane,Lifting Moving Mater

Condition:

New

Sling Type:

Wire Rope

Lifting Speed:

5/0.8m/min

Application:

Construction Site Lifter,warehouse And So On,Single Girder Crane Use

Color:

Yellow

Travel Speed:

20/5 M/Min

Hook:

Forged Steel

Customization:

Yes

Product Description

5ton 9m European style single girder wire rope hoist

model			VTW-S 5T
SWL		t	5
lifting height		m	9
lifting speed		m/min	0.8/5.0
travel speed		m/min	5-20
power in		V;HZ	220~460V 50/60Hz
FEM(GB)		--	2m(M5)
lifting motor	power	KW	1.0/6.1
	RPM	n/min	420/2840
	insulation	--	F
	production	--	IP55
	duration	--	40%
	rated current		5.17/14.20
lift gear ratio		--	67.59
drum dia		mm	190
wire rope		--	8-8*26(WS)+IWRC
travel motor	power in	KW	0.4*2
	RPM	n/min	104
	insulation	--	F
	production	--	IP55
	duration	--
	rated current	A	2.35
wheel dia		mm	100

1.Structural design features

• Compact European design
The 5-ton wire rope hoist continues the European lightweight concept, reducing the weight of the equipment while ensuring strength, and reducing the requirements for the load-bearing structure of the plant. It is especially suitable for scenes with limited space but frequent lifting of heavy materials.

• Modular components
The core components such as motors, reducers, and drums are modularly designed to support quick disassembly and maintenance, reducing downtime due to failures.

2. Lifting performance
• High load capacity
Rated load is 5tons, standard lifting height is 9 meters (customizable to 15 meters or higher), meeting the needs of heavy equipment installation, steel handling and other scenarios.

• Precise speed control
Standard or optional variable frequency drive technology to achieve stepless adjustment of lifting speed (such as 0.5-8m/min), smooth heavy-load start-up and avoid heavy object shaking.

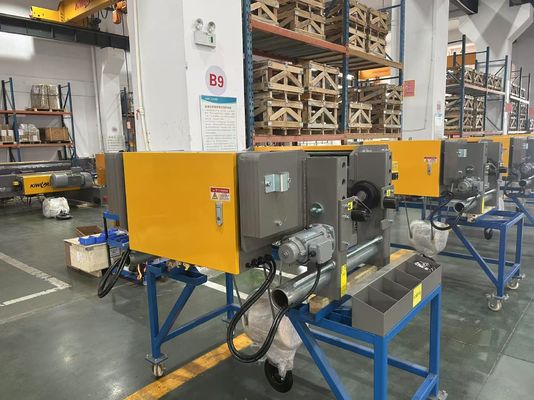

5ton 9m European style single girder wire rope hoist 0

3.Traveling Mechanism

• The electric trolley, running motor, running reducer, driven trolley, etc. together form the running mechanism, which drives the main machine to move through the frame. Its running speed is generally variable frequency dual speed 20/5m/min, and the wheel tread is a straight plane.

5ton 9m European style single girder wire rope hoist 1
