European Single Girder Electric Wire Hoist With Modular Design Low Noise 20T 12M

MOQ: one set
Price: USD1,500~6,000 one set
Standard Packaging: Wooden Box Packaging
Delivery Period: 20 Working Days
Payment Method: MoneyGram, Western Union, T/T, D/P, D/A
Supply Capacity: 1000 Sets One Year
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
KIWI
Certification
ISO,CE
Model Number
VTS
Model Number:
VTS-20
Lifting Capacity:
20T
Lifting Height:
12M
Power:
220-460V 50/60hz 3 Phase
Warranty:
1 Year
Production Name:
Single Girder Electric Wire Rope Hoist 20T 12M
Condition:
New
Usage:
Construction Hoist,Mining Hoist,Bridge Crane,Lifting Moving Mater
Sling Type:
Wire Rope
Lifting Speed:
4/0.66m/min
Application:
Construction Site Lifter,Warehouse And So On,Single Girder Crane Use
Color:
Yellow
Travel Speed:
20/5 M/min
Job Level:
M5
Protection Level:
IP55
Highlight:

Electric Wire Hoist 20T

,

Modular Electric Wire Hoist

,

Low Noise Electric Wire Hoist

Product Description

European Single Girder Electric Wire Hoist With Modular design Low noise 20T 12M



model   VTW-S 20T
SWL t 20
lifting height m 12
lifting speed m/min 0.66/4.0
travel speed m/min 5-20
power in V;HZ 220~460V 50/60Hz
FEM(GB) -- 2m(M5)
lifting motor power KW 2.6/16
RPM n/min 460/2770
insulation -- F
production -- IP55
duration -- 40%
rated current A 33
lift gear ratio -- 169
drum dia mm 295
wire rope -- 15-8*26S+2160
travel motor power in KW 2*0.75
RPM n/min 35.2-140.8
insulation -- F
production -- IP55
duration --
rated current A 2.5
wheel dia mm 150



1. Improved core parameters:

Rated lifting capacity: 20 tons (20,000 kg) - This is its core capability, suitable for heavier loads.

Lifting height: 15 meters - Meet the needs of the corresponding workspace.



2. Strengthened European design features:

Stronger structure, relatively optimized deadweight: Although the tonnage has increased, the essence of European design remains. High-strength alloy steel materials, optimized box beam structure or thickened plate are used to ensure strength and rigidity, while controlling deadweight as much as possible to reduce the burden on factory driving. The overall size will be larger than 16 tons, but it is still compact compared to traditional hoists of the same tonnage.



3. Three-in-one drive mechanism (enhanced version):

The integration is still high, but the motor power is significantly increased (for example, from about 11-15kW of 16 tons to 18-22kW or higher, depending on the brand and speed).

The gear modulus, shaft diameter and bearing specifications of the reducer are comprehensively improved to transmit greater torque and withstand greater load impact.

The drum diameter and length are usually increased to accommodate thicker wire ropes and ensure sufficient rope capacity. The drum wall thickness and structural strength are enhanced.

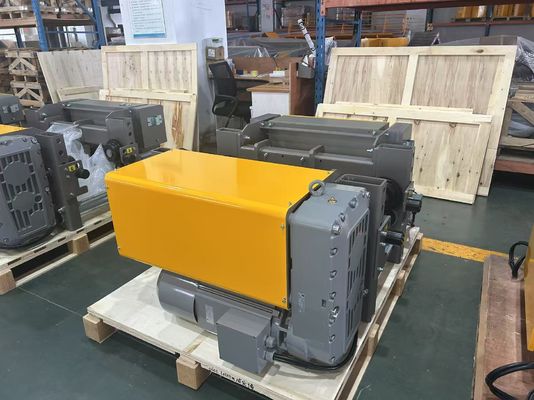

European Single Girder Electric Wire Hoist With Modular Design Low Noise 20T 12M 0

4. High-power and high-performance lifting motor:

Use a higher-power squirrel cage asynchronous motor with forced air cooling.

Built-in disc brake (increased size and braking torque) to ensure safe braking of 20-ton loads. Higher requirements for brake reliability.

Standard thermal protection to prevent motor overheating damage.



5. Wire rope and drum (reinforced):

Use thicker and higher-strength galvanized wire rope (for example, the diameter may increase from about 18mm for 16 tons to about 20-22mm, such as 6x36WS+IWRC or 35x7). More emphasis is placed on wear resistance, extrusion resistance and rotation resistance.

The drum design pays more attention to wire rope guidance and rope arrangement to prevent rope disorder caused by heavy load and thick rope diameter. The rope groove design and drum end baffle strength are enhanced.



6. Heavy-duty hook device:

Equipped with forged alloy steel hooks of higher strength grade and larger size (20-ton class), strictly in compliance with FEM/DIN and other standards.

The hook is equipped with a safety tongue (lock) and thrust bearing to ensure 360° free rotation and safety and reliability.

The pulley ratio may be increased or the pulley diameter/shaft diameter may be increased (for example, from 2/1 ratio of 16 tons to 4/1 ratio) to disperse the wire rope tension and reduce the force on a single rope, which may also affect the lifting speed.
