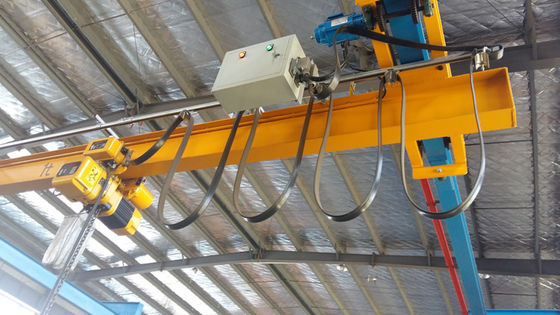

Electric Single Girder Suspension Crane Span 9 Meters 500 Kg Bridge Crane
Products

Electric Overhead Crane

Single Girder Overhead Crane

Double Girder Overhead Crane

Suspension Crane

Jib Crane

Electric Jib Crane

Manual Jib Crane

Gantry Crane

Electric Wire Rope Hoist

Single Girder Wire Rope Hoist

Double Girder Hoist

Electric Chain Hoist

Crane End Carriage

Wheel Block

Crane Conductor System

Inverter Control Panel

Crane Wheel
Contact Us
Mr. Chen
kw30@kiwicrane.com
86-551-67753801
Contact Now
Name
  • Name
  • Name

Electric Single Girder Suspension Crane Span 9 Meters 500 Kg Bridge Crane

MOQ: one set
Price: USD3000~10000 one set
Standard Packaging: PALLET
Delivery Period: 20 Working Days
Payment Method: MoneyGram, Western Union, T/T, D/P, D/A
Supply Capacity: 1000 Sets One Year
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
kiwicrane
Certification
ISO、CE
Model Number
LX
Safety Features:
Overload Protection, Emergency Stop Button, Limit Switch
Span:
9M
Lifting Height:
6M
Operating Environment:
Indoor
Control Method:
Remote Control/Pendant Control
Warranty:
1 Year
Working Temperature:
-20℃ To 40℃
Crane Speed:
20/5 Meters Per Minute
Capacity:
500kg
Type:
Suspension Crane
Hoisting Speed:
5/0.8 M/min
Power Supply:
3-phase AC, 220-460V, 50/60Hz
Application:
Material Handling
Highlight:
Material Handling Suspension Crane, 9m Suspension Crane, 3 Phase 5 Ton Overhead Crane
Highlight:

500 kg Suspension Crane

,

500 kg Bridge Crane

,

Electric Single Girder Suspension Crane

Product Description

Electric single girder suspension crane span 9 meters 500 kg bridge crane



1. Column-free design

The main beam is directly suspended on the steel structure of the workshop roof or the lower flange of the special I-beam track, which does not occupy the ground space and is suitable for places with narrow passages (such as assembly lines and warehouse mezzanines).
Electric Single Girder Suspension Crane Span 9 Meters 500 Kg Bridge Crane 0
2. Minimalist main beam structure

Cold-rolled I-beams or box beams (section height is usually ≤300mm) are used, with a deadweight of only 300~500kg and low requirements for roof load (generally ≤1.5 tons/point).

3. Modular components

Standard segment main beams (3~9m/segment) can be quickly spliced ​​to adapt to different spans (usually ≤16m).

4. Low investment cost

The price of the whole machine is about 30,000~80,000 yuan (only 1%~3% of double-beam bridge cranes), and the installation fee is less than 10,000 yuan.

5. Fast deployment

It only takes 2~3 weeks from ordering to production (heavy-duty bridge cranes take 3~6 months).

6. Extreme optimization of energy consumption
Electric Single Girder Suspension Crane Span 9 Meters 500 Kg Bridge Crane 1
Power consumption of 500kg running for 1 hour is ≤0.5kWh (equivalent to 1/3 of the power consumption of household air conditioners).

7. Key points of safety design
Load protection: electronic overload limiter (error ±5%), automatic power cut-off at 110% rated load

Stroke protection: spring buffer (collision force ≤5kN) + mechanical block

Emergency brake: automatic brake when the motor loses power (braking distance <50mm)

Electrical safety: ground fault protection + control circuit safety voltage

Parameter Specification
Type Electric Suspension Crane
Capacity (Lifting Load) 500 kg
Span 9m
Lifting Height Customizable (e.g., 6m, 9m, etc.)
Lifting Speed 5/0.8m/min (standard)
Trolley Travel Speed 20/5 m/min (VFD)
Bridge Travel Speed 20/5 m/min (VFD)
Power Supply 3-phase, 380V/50Hz (or as required)
Control Method Pendant control / Radio
Duty Class FEM 1Am / ISO M3 (Light-Medium Duty)
Protection Level IP55 (Dust & Waterproof)
Safety Features Overload limiter switches, emergency stop
