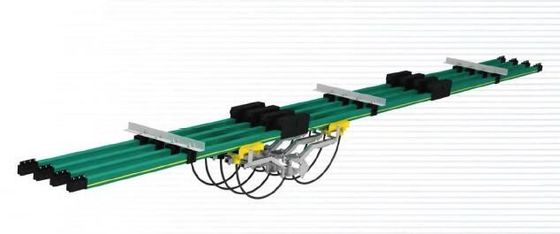

Electric Power Crane Conductor System For Overhead Crane
  • Name
  • Name
  • Name

Electric Power Crane Conductor System For Overhead Crane

MOQ: 100m
Price: USD300-3000/unit
Standard Packaging: Crates
Delivery Period: 15days
Payment Method: D/A,D/P,T/T,Western Union
Supply Capacity: 500000m one year
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
kiwicranes
Certification
ISO
Model Number
JDC
Document
kiwicrane seamless busbar.pdf
Conductor Type:
Aluminum/Copper
Nominal Current:
150A-3000A
D.C. Resistance:
0.015-0.376Ω/km
Impendance:
0.017-0.381Ω/km
Support Sapcing:
1.5m
Rail Length:
4.5-6m
Housing Length:
4.42-5.8m
Max Voltage:
660V
Expansion Joint:
No Required ≤200m
Flame Retardant:
Class B1-no Flaming Particles, Self-extinguishing
Highlight:

Electric Power Crane Conductor System

,

Overhead Crane Conductor System

,

1.5m overhead crane busbar system

Product Description

                                                        Electric Power Conductor Cystem For Electric Overhead Crane

1,BUS-BAR

Supply 1000m conductor without any joint.

Installation easily and quickly. Offer 3P,4P(50A,80A,100A,120A,140A) five types,with the load matching selection and utilization economically. Meanwhile 3P,4P can be combined into the 6P and above types. Conductor:copper with rigid PVC.

2, Insulated conductor rails

Using single-pole insulated conductor rails.It complies with the latest regulations and provide the electric energy for mobile consumers.The conductor rail material is copper(200A-5000A),aluminiium(150A-3000A). The aluminium conductor rail is provided with a proven and patented stainless steel contact surface. Any numbers of poles can be installed vertically of horizontally,on straight or curved systems.

The conductor rails system can be installed indoor or outdoor.For high temperature conditions,a high temperature insulation cover up to 115degree is available,also for low temperature conditions,it could be up to -40 degree. Approved and listed by: CCC,ISO9001 and CE.

3,C-track festoon system support conductor cables(flat or round)

C-track Festoon system support conductor cables(flat or round) and hoses(hydraulic and pneumatic applications) for delivering power & control to mobile equipment in a safe,efficient and maintenance free method.

 Cable trolleys not only deliver power and control to mobile equipment which has reciprocal motion but also support large quantities of data cables including optic fibres travelling independently from the mobile machinery.

Tags:

cable trolley system,

crane busbar system,

Crane Conductor System
