Enclosed Power Conductor Rail System For EOT Crane 10 Ton
  • Name

Enclosed Power Conductor Rail System For EOT Crane 10 Ton

MOQ: 100m
Price: USD300-3000/set
Standard Packaging: crates
Delivery Period: 15 working days
Payment Method: D/A,D/P,T/T,Western Union
Supply Capacity: 100000m one year
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
kiwicranes
Certification
ISO
Model Number
HFP
Conductor Type:
Aluminum/Copper
Nominal Current:
150A-3000A
D.C. Resistance:
0.015-0.376Ω/Km
Impendance:
0.017-0.381Ω/Km
Support Sapcing:
1.5m
Rail Length:
4.5-6m
Housing Length:
4.42-5.8m
Max Voltage:
660V
Expansion Joint:
No Required ≤200m
Flame Retardant:
Class B1-No Flaming Particles, Self-Extinguishing
Highlight:

EOT Crane conductor rail system

,

Enclosed Power conductor rail system

,

10T conductor bar systems

Product Description

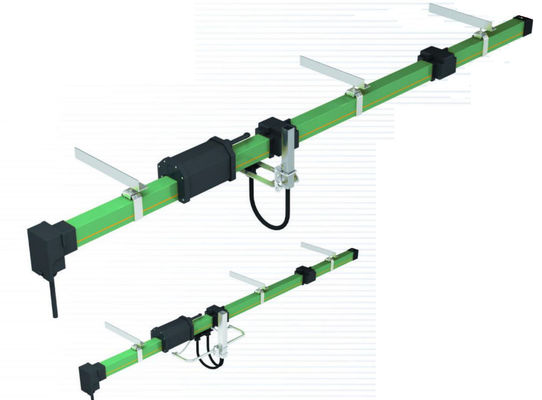

                                        Enclosed Power Conductor Rail System For EOT Crane 10ton

Enclosed power conductor rail system is a power rail,protected from contact (IP23),The enclosed busbar with the function of preventing accidental impact hazards. It can be used both indoors and outdoors. The structure is an engineering plastic insulating shell that can be loaded with copper wires of different cross-sectional areas. Its rated current value is 35A to 240A. The operation of the collector is guided by a tractor, mainly transmitted by a carbon brush with a spring. The matching rubber dust strip can effectively improve the I protection level of the busbar, and the protection level can reach up to IP43. This series of bus-bars are 3-pole to 16-pole devices. The 56 series is a 3-pole or 4-pole device. The HFP-R type is an arc busbar, which can be made into an arc busbar with a radius greater than 800mm. It has passed the following certifications: ccc, ISo9001 and CE certification.

1,Housing

Color green, plastic housing for 3-4 conductors. Standard section 4 m each bar.Other sections are available.

The ground conductor is identified by yellow color.Phase reversing prevented by design of the collector and housing.

Enclosed Power Conductor Rail System For EOT Crane 10 Ton 0

2, Hangers

Standard brackets for powerail attachment to crane girders are available.Powerail with sliding and fix point hangers.

Standard distance between suspension points for indoor and outdoor.Installations space: 1200mm.

Material: galvanized steel

Enclosed Power Conductor Rail System For EOT Crane 10 Ton 1

Enclosed Power Conductor Rail System For EOT Crane 10 Ton 2

3,Current Collector

25A, 2.5mm²/corex4

40A,4.0mm²/corex4+ 2.5mm²/core×1

0.8m long, longer cables on request.

Enclosed Power Conductor Rail System For EOT Crane 10 Ton 3

Enclosed Power Conductor Rail System For EOT Crane 10 Ton 4

4, Joint Cap

Fixed with bolted joints and self locking for installation easily.

Material: plastic

Enclosed Power Conductor Rail System For EOT Crane 10 Ton 5

Enclosed Power Conductor Rail System For EOT Crane 10 Ton 6

5, End Feed

left and right version.

Enclosed Power Conductor Rail System For EOT Crane 10 Ton 7

Enclosed Power Conductor Rail System For EOT Crane 10 Ton 8

Enclosed Power Conductor Rail System For EOT Crane 10 Ton 9

Poles 4P
Cross Section 8mm²
Max Current 50A
Leakage-distance 35mm
Max Voltage 690V
Resistance 1.656Ω/Km
Weight 2.1kg
Standard Length 4m





Tags:

cable trolley system,

crane busbar system,

Crane Conductor System
