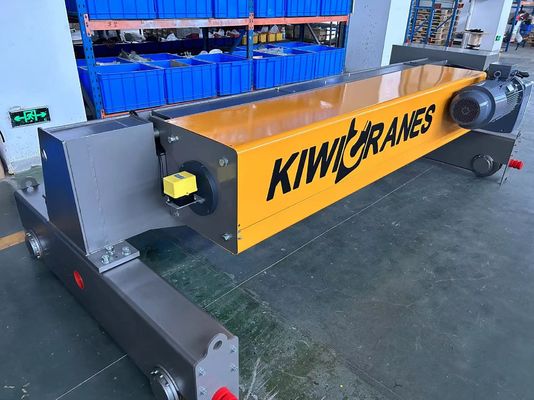

Radio Remote Control Double Girder Electric Hoist Rope 63 Ton

                                                     Double Girder Electric Wire Rope Hoist

      Euro-standard design double beam electric wire rope hoist, conformity of ISO and CE certificate

1. Structure and load-bearing capacity
Double-beam structure design: The double-beam bridge structure is adopted to disperse the load pressure and improve the overall stability, which is suitable for large-span and high-frequency lifting operations.

High load-bearing capacity: The rated load is up to 63 tons, which is suitable for heavy industrial scenes such as steel, ports, shipbuilding, and large equipment manufacturing.

High-strength steel wire rope: Equipped with multi-layer anti-rotation steel wire rope, it has high tensile strength, wear resistance and corrosion resistance, and is suitable for long-term heavy-load use.

2. Drive and control system
Efficient motor system: The high-power motor provides strong power, supports low-speed heavy-load or high-speed no-load operation, and meets the needs of different working conditions.

Frequency conversion control (optional): Some models support frequency conversion speed regulation to achieve smooth start and stop of lifting and walking, reduce impact, and accurately position.

Dual-speed or multi-speed mode: Adapt to the flexible switching between fine lifting and fast handling.

3. Safety protection device
Multiple safety protection:

Overload protection: Automatically cut off the power supply to prevent overload damage to the equipment.

Limit switch: Double limit for up and down travel to prevent excessive winding or falling of the wire rope.

Emergency brake system: Automatically start mechanical brake when power is off to ensure safety in emergency situations.

Wire rope anti-slip groove design: Prevent the wire rope from detaching from the pulley to reduce accidental risks.

4. Environmental adaptability
Harsh environment resistance: Customizable protection level (such as IP55/IP65) or explosion-proof model, suitable for high temperature, dust, humidity or flammable and explosive environment.

Wide span design: The double-beam structure supports large-span workshop or warehouse layout and flexibly adapts to different site requirements.

5. Operation and maintenance
Wireless remote control/cab control: Provide ground remote control or cab control options to improve operation convenience and safety.

Modular design: Key components (such as motors and brakes) can be quickly disassembled and replaced to reduce maintenance costs and time.

Long life design: Use high-durability materials and lubrication systems to reduce the frequency of daily maintenance.

6. Standards and Certifications
Comply with international/national standards (such as ISO) and pass CE certification to ensure safety and reliability.
