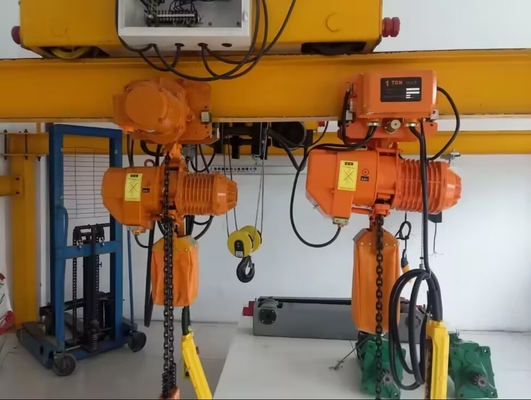

5Ton Electric Chain Hoist with Dual Lifting Speed and Motorized Trolley
  • Name

5Ton Electric Chain Hoist with Dual Lifting Speed and Motorized Trolley

MOQ: 1
Price: USD1,000~3,000 one set
Standard Packaging: crates
Delivery Period: 8working days
Payment Method: D/P,D/A,T/T,Western Union
Supply Capacity: 1000sets one year
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
kiwicranes
Certification
CE/ISO
Model Number
HHBB
Push Botton:
Waterproof Push Botton
Load Of Chain:
G80 Chain
Condition:
New
Protection Level:
IP55
Materail:
Steel
Trolley Type:
Manual/Motorized
Height:
3m-50m
Color:
Blue
Motor Power:
3kW
Power Supply:
3P 220~460V 50/60Hz
Highlight:

5Ton electric chain hoist

,

dual speed chain hoist

,

motorized trolley hoist

Product Description

5Ton Electric Chain Hoist with Dual Lifting Speed With Motorized Safe Operation

Electric Chain Hoist Brief Description

Core performance enhancement
Super large load capacity

Rated lifting capacity of 5 tons (some models can be overloaded to 125% for a short time), can safely lift heavy machinery, large molds, steel structures, etc.

High-strength alloy lifting chain: using φ13mm~16mm large diameter alloy steel chain (much thicker than φ6mm~10mm of 1-ton model), carburized and quenched, tensile strength ≥800MPa, wear-resistant and impact-resistant.

Reinforced hook: forged alloy steel hook body, standard safety tongue, some models are equipped with rotating hook, convenient for adjusting the load direction.

Powerful drive system

High-power motor: three-phase 380V motor (power about 3kW~7.5kW), providing stable power, smooth start and stop without impact.

Double-stage gear reduction: optimized gearbox design, using hardened gears, transmission efficiency>80%, low noise (<75dB) and good heat dissipation.

Dual speed/frequency conversion control (optional):

Normal speed + micro speed: Micro speed (1/3~1/10 of normal speed) is used for precise positioning (such as equipment installation).

Frequency conversion control: stepless speed regulation, smoother start and stop, and reduced load swing (especially suitable for precision lifting).

Lifting Motor:

Power & Performance

Rated Capacity: 1tons (compatible with standard 220V/380V or customized voltage).

Duty Class: S3 (15-40%) – Suitable for intermittent operation with frequent starts/stops.

Insulation Class: F-grade (heat-resistant, ensuring long service life).

Speed Control Options

Single-speed: Standard fixed-speed operation (e.g., 6.6 m/min).

Dual-speed: Dual-winding motor for precision lifting (e.g., 2.2/6.6 m/min).

Optional VFD Control: Smooth acceleration/deceleration for sensitive loads.

5Ton Electric Chain Hoist with Dual Lifting Speed and Motorized Trolley 0



lifting capacity 5ton
lifting height 5m
lifting speed 6.6m/min
lifting motor 3.0kW
travel speed

21m/min
travel motor 0.4kW
power in 3phase 220-440V 50/60Hz
control  24/36/48V



Tags:

electric chain hoist,

electric chain hoist crane,

electric trolley chain hoist
