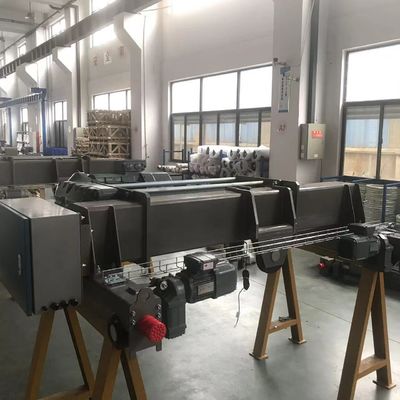

16 Ton Factory Double Girder Electric Wire Rope Hoist Radio Remote Control
  • Name
  • Name
  • Name
  • Name
  • Name

16 Ton Factory Double Girder Electric Wire Rope Hoist Radio Remote Control

MOQ: 1
Price: USD2,500~25,000 one set
Standard Packaging: Wooden box packaging
Delivery Period: 15 working days
Payment Method: D/A,D/P,T/T,Western Union,MoneyGram
Supply Capacity: 5000sets one year
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
kiwicrane
Certification
ISO,CE
Model Number
VTW-D
Capacity:
16Ton
Lifting Height:
6-30M
Sling Type:
Wire Rope
Trolley Speed:
0-20 M/Min
Hoisting Speed:
0-12 M/Min
Control Method:
Remote Control
Safety Features:
Overload Protection, Emergency Stop
Trolley Motor:
Inverter Control
Hoist Brake:
DC Magnetic Brake
Power Source:
3Phase 220~460V 50/60Hz
Working Class:
M5(2m)
Color:
Yellow（Customizable）
Package:
Wooden Box Packaging
Highlight:

16 Ton wire rope hoist

,

Electric wire rope hoist

,

Radio Remote Control cable hoist electric

Product Description

              Double Girder Electric Wire Rope Hoist 16ton



      Euro-standard design double beam electric wire rope hoist, conformity of ISO and CE certificate





model   VTW-DS 16T
SWL t 16
lifting height m 6-30
lifting speed m/min 0.66/4
travel speed m/min 5-20
power in V;HZ   220~460V 50/60Hz
FEM(GB) -- 2m(M5)
lifting motor power KW 2.6/16
RPM n/min

460/2770
insulation -- F
production -- IP55
duration -- 30%

lift gear ratio -- 169
drum dia mm 295
wire rope -- IWRC-15-8*265-2160
travel motor power in KW 2-0.75
RPM n/min
insulation --
production --
duration --
rated current
wheel dia mm 200

      1. Core parameters
Rated load: 16 tons (suitable for small and medium-sized material handling, design redundancy coefficient ≥ 1.25)
Lifting height: 9 meters (standard configuration, can be expanded according to needs)
Working level: M5 (suitable for medium-intensity work, daily average working cycle 2-4 hours)
Lifting speed: 5/0.8 m/min (can be equipped with variable frequency speed regulation, no-load high speed/load low speed switching)
Span range: typical double-beam span 7.5-28.5 meters (box-type main beam + end beam combination structure)



2.Lifting Motor
The compact wire rope hoist is designed according to FEM standards. The lifting drive adopts low noise, high efficiency, easy maintenance, aluminum three-stage parallel shaft gear reduction motor, which is directly installed on the drum. The high-power lifting motor with double-sided safety brake is available for users to choose from two options: double speed and variable speed. Chinese brand and SEW brand for option.



3. Wire Rope Drum
The drum is directly connected to the reducer, which makes the start-up smoother. One end of the drum is connected with the lifting reducer and motor, and works with the suspension device through the wire rope; the other end is equipped with a height limit device.The wire rope drum is equipped with a rope guide as standard to reduce wire rope damage during operation and extend the service life of the wire rope.



4. Hook Block
The hook is forged with special steel for hooks, and is connected to the outer shell through a thrust ball bearing through the hook crossbeam, so that the hook can operate freely. It is a double pulley type.



5 .Electrical Panel
The electrical device of the hoist consists of an electrical control box, a frequency converter, a contactor, a circuit breaker, an overweight limiter, a height limiter, a push button switch, a limiter and connecting wires. Inverter can be Chinese brand, Schneider, ABB, or ther brand



6.Typical application scenarios
Steel metallurgy: auxiliary lifting of steel ladles (with high temperature resistant kit), continuous casting billet transfer

Heavy machinery: mining equipment assembly (large span workshop over 20m)

Shipbuilding: hull segment flip lifting (with ±1° inclination monitoring)

Electric power engineering: transformer installation (anti-magnetic interference version

Tags:

16 Ton wire rope hoist,

Electric wire rope hoist,

Radio Remote Control cable hoist electric
