Outdoor Use Electric Single Girder Gantry Crane 10 Ton Span 20m

Products

Crane Wheel

Mr. Chen

kw30@kiwicrane.com

86-551-67753801

Contact Now

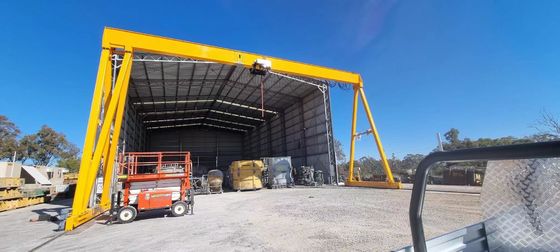

Outdoor Use Electric Single Girder Gantry Crane 10 Ton Span 20m

MOQ:	1
Price:	USD10000~200000 one set
Delivery Period:	30 working days
Payment Method:	D/A,D/P,T/T,Western Union
Supply Capacity:	1000sets one year

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

kiwicranes

Certification

ISO/CE

Model Number

Lifting Height:

12m

Span Length:

16m

Load Capacity:

10ton

Power Supply:

200~460V/50/60Hz/3P

Lifting Mechansim:

Electric Hoist

Operation:

Radio Remote Control

Working System:

Color:

Yellow Or Customized

Delivery Inspection:

Available

Feature:

Gantry Crane

Highlight:

Single Girder Gantry Crane

20m Gantry Crane

10 Ton single gantry crane

Product Description

Outdoor Use Electric Single Girder Gantry Crane 10ton

Brief Description:
The Electric Single-Girder Gantry Crane (10-ton capacity) is a cost-effective lifting solution designed for outdoor/indoor material handling applications. It features a simple yet robust structure with a single girder design, powered by electric hoist for smooth operation. Ideal for workshops, warehouses, construction sites, and freight yards where heavy loads need to be moved efficiently. The crane offers easy installation, low maintenance, and reliable performance with standard safety features like overload protection and limit switches. operated by radio remote control.

1)The main girder adopts welded box beam, which has compact structure and light weight.It can be bolted in sections if span over 12 meters, which is convenient for container transportation.

Outdoor Use Electric Single Girder Gantry Crane 10 Ton Span 20m 0

Outdoor Use Electric Single Girder Gantry Crane 10 Ton Span 20m 1

2)end carriage

Wheels & Drive: Equipped with double-flanged wheels (cast steel or forged) and motorized travel drives (both sides) for smooth movement.
Buffers: Integrated rubber to absorb shocks at travel limits.
Guarding: Optional anti-collision devices and cable reels for power supply management.
Surface Treatment: Painted with anti-rust primer and weather-resistant topcoat for outdoor use.

Outdoor Use Electric Single Girder Gantry Crane 10 Ton Span 20m 2

Outdoor Use Electric Single Girder Gantry Crane 10 Ton Span 20m 3

Outdoor Use Electric Single Girder Gantry Crane 10 Ton Span 20m 4

3)legs

Fabricated from high-quality Q235B steel with rigid box-type

Outdoor Use Electric Single Girder Gantry Crane 10 Ton Span 20m 5

4) control panel for long traveling(VFD control)

pendant push buttons control (radio wireless remote control option)

Outdoor Use Electric Single Girder Gantry Crane 10 Ton Span 20m 6

5) cross C-track power cables

Outdoor Use Electric Single Girder Gantry Crane 10 Ton Span 20m 7

6) electric wire rope hoist(M5 duty, lower headroom type)

Outdoor Use Electric Single Girder Gantry Crane 10 Ton Span 20m 8

Capacity	10ton
Span	8m~20m (customizable)
Lifting Height	6m~12m (standard)
Work Duty	A3-A4 (moderate to heavy use)
Lifting Speed	5/0.8m/min
Travelling Speed	20 m/min VFD (crab), 30 m/min VFD(gantry)
Power Supply	380V/50Hz, 3-phase (or as required)
Hoist Type	Electric wire rope hoist
Control Mode	Pendant push-button/Radio remote
Rail Type	P30/P38 (or customer-specified)
Ambient Temperature	-20°C to +40°C
Safety Features	Overload limiter, limit switches, emergency stop

Tags:

Products

MOQ:	1
Price:	USD10000~200000 one set
Delivery Period:	30 working days
Payment Method:	D/A,D/P,T/T,Western Union
Supply Capacity:	1000sets one year

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

kiwicranes

Certification

ISO/CE

Model Number

Lifting Height:

12m

Span Length:

16m

Load Capacity:

10ton

Power Supply:

200~460V/50/60Hz/3P

Lifting Mechansim:

Electric Hoist

Operation:

Radio Remote Control

Working System:

Color:

Yellow Or Customized

Delivery Inspection:

Available

Feature:

Gantry Crane

Minimum Order Quantity:

Price:

USD10000~200000 one set

Delivery Time:

30 working days

Payment Terms:

D/A,D/P,T/T,Western Union

Supply Ability:

1000sets one year

Highlight

Single Girder Gantry Crane

20m Gantry Crane

10 Ton single gantry crane

Product Description

Outdoor Use Electric Single Girder Gantry Crane 10ton

1)The main girder adopts welded box beam, which has compact structure and light weight.It can be bolted in sections if span over 12 meters, which is convenient for container transportation.

Outdoor Use Electric Single Girder Gantry Crane 10 Ton Span 20m 0

Outdoor Use Electric Single Girder Gantry Crane 10 Ton Span 20m 1

2)end carriage

Wheels & Drive: Equipped with double-flanged wheels (cast steel or forged) and motorized travel drives (both sides) for smooth movement.
Buffers: Integrated rubber to absorb shocks at travel limits.
Guarding: Optional anti-collision devices and cable reels for power supply management.
Surface Treatment: Painted with anti-rust primer and weather-resistant topcoat for outdoor use.

Outdoor Use Electric Single Girder Gantry Crane 10 Ton Span 20m 2

Outdoor Use Electric Single Girder Gantry Crane 10 Ton Span 20m 3

Outdoor Use Electric Single Girder Gantry Crane 10 Ton Span 20m 4

3)legs

Fabricated from high-quality Q235B steel with rigid box-type

Outdoor Use Electric Single Girder Gantry Crane 10 Ton Span 20m 5

4) control panel for long traveling(VFD control)

pendant push buttons control (radio wireless remote control option)

Outdoor Use Electric Single Girder Gantry Crane 10 Ton Span 20m 6

5) cross C-track power cables

Outdoor Use Electric Single Girder Gantry Crane 10 Ton Span 20m 7

6) electric wire rope hoist(M5 duty, lower headroom type)

Outdoor Use Electric Single Girder Gantry Crane 10 Ton Span 20m 8

Capacity	10ton
Span	8m~20m (customizable)
Lifting Height	6m~12m (standard)
Work Duty	A3-A4 (moderate to heavy use)
Lifting Speed	5/0.8m/min
Travelling Speed	20 m/min VFD (crab), 30 m/min VFD(gantry)
Power Supply	380V/50Hz, 3-phase (or as required)
Hoist Type	Electric wire rope hoist
Control Mode	Pendant push-button/Radio remote
Rail Type	P30/P38 (or customer-specified)
Ambient Temperature	-20°C to +40°C
Safety Features	Overload limiter, limit switches, emergency stop
