10 Ton Span 30m Single Girder Gantry Crane Outdoor Use Electric

MOQ:	1
Price:	USD10000~200000 one set
Delivery Period:	30 working days
Payment Method:	D/A,D/P,T/T,Western Union
Supply Capacity:	1000sets one year

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

kiwicranes

Certification

ISO/CE

Model Number

Safety Device:

Overload Limit Switch

Delivery Inspection:

Available

Oem Service:

Yes

Protection Grade:

IP55

Control Method:

Pendent Button, Wireless Remote, Cabin

Lifting Height:

6-30 Meters

Work Duty:

A5~A7

Long Travel Speed:

0-45 M/min

Structure Form:

Gantry

Crane Type:

MH Type Gantry Crane

Highlight:

30m 10 ton gantry crane

Single Girder 10 ton gantry crane

Electric 10t gantry crane

Product Description

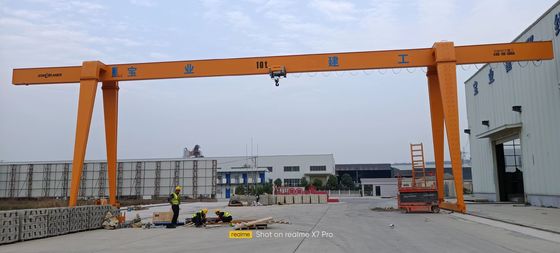

Outdoor Use Electric Single Girder Gantry Crane 10ton

Brief Description:
The Electric Single-Girder Gantry Crane (10-ton capacity) is a cost-effective lifting solution designed for outdoor/indoor material handling applications. It features a simple yet robust structure with a single girder design, powered by electric hoist for smooth operation. Ideal for workshops, warehouses, construction sites, and freight yards where heavy loads need to be moved efficiently. The crane offers easy installation, low maintenance, and reliable performance with standard safety features like overload protection and limit switches. operated by radio remote control.

1)The main girder adopts welded box beam, which has compact structure and light weight.It can be bolted in sections if span over 12 meters, which is convenient for container transportation.

10 Ton Span 30m Single Girder Gantry Crane Outdoor Use Electric 0

2)end carriage

Wheels & Drive: Equipped with double-flanged wheels (cast steel or forged) and motorized travel drives (both sides) for smooth movement.
Buffers: Integrated rubber to absorb shocks at travel limits.
Guarding: Optional anti-collision devices and cable reels for power supply management.
Surface Treatment: Painted with anti-rust primer and weather-resistant topcoat for outdoor use.

10 Ton Span 30m Single Girder Gantry Crane Outdoor Use Electric 1

10 Ton Span 30m Single Girder Gantry Crane Outdoor Use Electric 2

10 Ton Span 30m Single Girder Gantry Crane Outdoor Use Electric 3

3)legs

Fabricated from high-quality Q235B steel with rigid box-type

10 Ton Span 30m Single Girder Gantry Crane Outdoor Use Electric 4

4) control panel for long traveling(VFD control)

pendant push buttons control (radio wireless remote control option)

10 Ton Span 30m Single Girder Gantry Crane Outdoor Use Electric 5

5) cross C-track power cables

10 Ton Span 30m Single Girder Gantry Crane Outdoor Use Electric 6

6) electric wire rope hoist(M5 duty, lower headroom type)

10 Ton Span 30m Single Girder Gantry Crane Outdoor Use Electric 7

Capacity	10ton
Span	30m (customizable)
Lifting Height	12m
Work Duty	A5
Lifting Speed	5/0.8m/min
Travelling Speed	20 m/min VFD (crab), 30 m/min VFD(gantry)
Power Supply	380V/50Hz, 3-phase (or as required)
Hoist Type	Electric wire rope hoist
Control Mode	Pendant push-button/Radio remote
Rail Type	P30/P38 (or customer-specified)
Ambient Temperature	-20°C to +40°C
Safety Features	Overload limiter, limit switches, emergency stop
