30 Ton Span 30m Electric Double Girder Gantry Crane Outdoor

MOQ:	1
Price:	USD10000~200000 one set
Delivery Period:	30 working days
Payment Method:	D/A,D/P,T/T,Western Union
Supply Capacity:	1000sets one year

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

kiwicranes

Certification

ISO/CE

Model Number

Lifting Capacity:

30ton

Control System:

Remote Control

Span:

30 Meters

Application:

Outdoor,Warehouse,factory,workshop

Work Duty:

Safety Features:

Overload Protection, Emergency Stop Button, Limit Switch

Control:

Remote, Pendant, Cabin

Main Electrical Parts:

Schneider Siemens

Painting Color:

Yellow Or Customized

Trolley Traveling Speed:

20/5 M/min

Rail:

43kg/M Or Other

Hoist Speed:

3 M/min

Highlight:

Electric double girder gantry crane

30m double girder gantry crane

30 Ton double gantry crane

Product Description

Outdoor Use Electric Single Girder Gantry Crane 30ton

Brief Description:

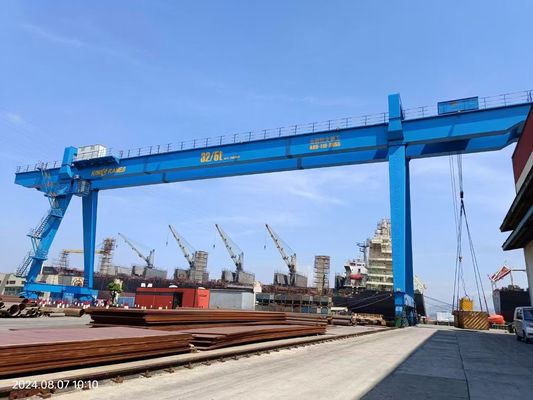

The 30-ton Double-Girder Electric Gantry Crane is a heavy-duty lifting solution engineered for outdoor applications such as ports, steel yards, and construction sites. With a 30m span and 12m lifting height, it handles heavy loads efficiently under A5 work class (heavy-duty cycle). The crane features:

Robust Construction: Welded box-type girders and reinforced end carriages for high stability.
Outdoor Protection: IP55 or higher-rated motors, corrosion-resistant coatings, and optional canopy/anti-wind devices.
Precision Control: Variable-frequency drives (VFD) for smooth hoisting/travel, reducing load swing.
Safety Systems: Overload protection, limit switches, emergency stop, and anti-collision sensors.

30 Ton Span 30m Electric Double Girder Gantry Crane Outdoor 0

30 Ton Span 30m Electric Double Girder Gantry Crane Outdoor 1

2)end carriage

Wheels & Drive: Equipped with double-flanged wheels (cast steel or forged) and motorized travel drives (both sides) for smooth movement.
Buffers: Integrated rubber to absorb shocks at travel limits.
Guarding: Optional anti-collision devices and cable reels for power supply management.
Surface Treatment: Painted with anti-rust primer and weather-resistant topcoat for outdoor use.

30 Ton Span 30m Electric Double Girder Gantry Crane Outdoor 2

30 Ton Span 30m Electric Double Girder Gantry Crane Outdoor 3

30 Ton Span 30m Electric Double Girder Gantry Crane Outdoor 4

3)legs

Fabricated from high-quality Q235B steel with rigid box-type

30 Ton Span 30m Electric Double Girder Gantry Crane Outdoor 5

4) control panel for long traveling(VFD control)

pendant push buttons control (radio wireless remote control option)

30 Ton Span 30m Electric Double Girder Gantry Crane Outdoor 6

5) cross C-track power cables

30 Ton Span 30m Electric Double Girder Gantry Crane Outdoor 7

6) electric wire rope hoist(M5 duty, lower headroom type)

30 Ton Span 30m Electric Double Girder Gantry Crane Outdoor 8

Capacity	30ton
Span	30m (customizable)
Lifting Height	12m
Work Duty	A5
Lifting Speed	0.5-5m/min VFD
Travelling Speed	20 m/min VFD (crab), 30 m/min VFD(gantry)
Power Supply	380V/50Hz, 3-phase (or as required)
Hoist Type	Electric wire rope hoist
Control Mode	Pendant push-button/Radio remote
Rail Type	P30/P38 (or customer-specified)
Ambient Temperature	-20°C to +40°C
Safety Features	Overload limiter, limit switches, emergency stop

Optional Features:

Cabin-operated control (with AC/heat).
Automatic positioning/lifting (PLC system).
Rubber-tired wheels (for trackless movement).
Load cell (real-time weight display).
