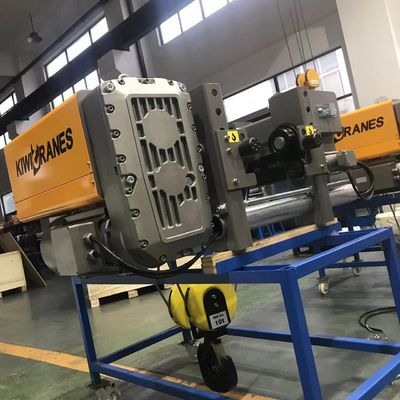

Customizable 5ton 12m European Style Single Girder Wire Rope Hoist

MOQ: one set
Price: USD1,000-5,000
Standard Packaging: Wooden Box Packaging
Delivery Period: 20 Working Days
Payment Method: MoneyGram, Western Union, T/T, D/P, D/A
Supply Capacity: 1000 Sets One Year`
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
kiwicrane
Certification
ISO、CE
Model Number
VTS
Lifting Capacity:
5000KG
Lifting Height:
12M
Power:
220-460V 50/60hz 3 Phase
Warranty:
1 Year
Production Name:
European Style Single Beam Electric Wire Rope Hoist 5T 12M
Usage:
Construction Hoist,Mining Hoist,Bridge Crane,Lifting Moving Mater
Condition:
New
Sling Type:
Wire Rope
Lifting Speed:
5/0.8m/min
Application:
Construction Site Lifter,warehouse And So On,Single Girder Crane Use
Color:
Yellow
Travel Speed:
20/5 M/Min
Hook:
Forged Steel
Customization:
Yes
Highlight:

European Single Girder Wire Rope Hoist

,

12m Single Girder Wire Rope Hoist

Product Description

5ton 12m European style single girder wire rope hoist





model   VTW-S 5T
SWL t 5
lifting height m 12
lifting speed m/min 0.8/5.0
travel speed m/min 5-20
power in V;HZ 220~460V 50/60Hz
FEM(GB) -- 2m(M5)
lifting motor power KW 1.0/6.1
RPM n/min 420/2840
insulation -- F
production -- IP55
duration -- 40%
rated current   5.17/14.20
lift gear ratio -- 67.59
drum dia mm 190
wire rope -- 8-8*26(WS)+IWRC
travel motor power in KW 0.4*2
RPM n/min 104
insulation -- F
production -- IP55
duration --
rated current A 2.35
wheel dia mm 100





1,Lightweight design:

This is one of the core advantages of European hoists. The use of high-strength materials and optimized structural design (such as compact reduction gearbox, lightweight shell) significantly reduces the deadweight of the hoist mainframe and running trolley while ensuring strength and performance.

Benefits: Reduces the load-bearing burden of the factory frame or track, reduces the civil construction cost; installation and maintenance are more convenient; the cross-section requirements of the crane main beam are reduced, making the whole machine lighter.

Customizable 5ton 12m European Style Single Girder Wire Rope Hoist 0

2,Compact structure:

The motor, reduction gearbox, drum, lifting limit and other components are exquisitely designed, reasonably laid out, and the overall volume is relatively small.

Benefits: Saves vertical and horizontal space, especially suitable for occasions with limited factory height or compact space; reduces the swing space requirements of the hoist during operation.

Customizable 5ton 12m European Style Single Girder Wire Rope Hoist 1

3,High performance and high efficiency:

Lifting speed: Usually equipped with a dual-speed motor (normal speed + slow speed), for example, normal speed is about 8 meters/minute, slow speed is about 2 meters/minute (the specific value varies depending on the brand model). Slow speed facilitates precise positioning.

Running speed: The running speed of the trolley (trolley) is usually around 20 m/min (higher speed is optional for variable frequency control).

Motor: A squirrel cage asynchronous motor with high efficiency and high insulation level (such as F or H) is used, which has low heat generation and long life.

Gearbox: Hardened helical gear transmission, high precision, low noise, strong load-bearing capacity, high efficiency and long life.

Tags:

European Single Girder Wire Rope Hoist,

12m Single Girder Wire Rope Hoist
