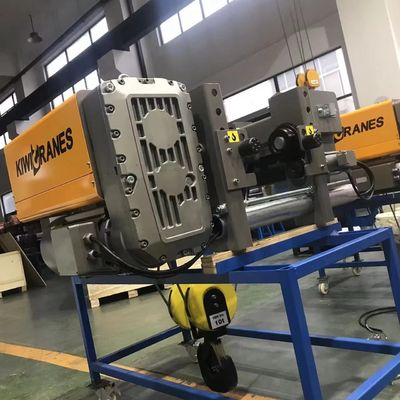

10ton 6m Single Girder Low Headroom Electric Wire Rope Hoist

MOQ: one set
Price: USD1,000-5,000
Standard Packaging: Wooden Box Packaging
Delivery Period: 20 Working Days
Payment Method: MoneyGram, Western Union, T/T, D/P, D/A
Supply Capacity: 1000 Sets One Year
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
kiwicrane
Certification
ISO、CE
Model Number
VTS
Model Number:
VTS
Production Name:
European Style Single Girder Electric Wire Rope Hoist 10T 6M
Lifting Capacity:
10T
Lifting Height:
6M
Power:
220-460V 50/60hz 3 Phase
Usage:
Construction Hoist,Mining Hoist,Bridge Crane,Lifting Moving Mater
Warranty:
1 Year
Condition:
New
Sling Type:
Wire Rope
Lifting Speed:
5/0.8m/min
Application:
Construction Site Lifter,warehouse And So On,Single Girder Crane Use
Color:
Yellow
Travel Speed:
20/5 M/Min
Hook:
Forged Steel
Highlight:

Electric Wire Rope Hoist

,

European Single Girder Wire Rope Hoist

,

6m Single Girder Wire Rope Hoist

Product Description

10ton 6m Single girder low headroom electric wire rope hoist



model   VTW-S 10T
SWL t 10
lifting height m 6
lifting speed m/min 0.8/5.0
travel speed m/min 5-20
power in V;HZ 220~460V 50/60Hz
FEM(GB) -- 2m(M5)
lifting motor power KW 1.5/9.5
RPM n/min 430/2900
insulation -- F
production -- IP55
duration -- 40%
rated current   5.17/14.20
lift gear ratio -- 119.8
drum dia mm 268
wire rope -- 11-8*26(WS)+IWRC
travel motor power in KW 2-0.4
RPM n/min 133
insulation -- F
production -- IP55
duration --
rated current A 2.5
wheel dia mm 125



1. Rated load:

10 tons: This is the maximum weight that the hoist can safely lift under normal working conditions. This is the core parameter.



2. Lifting height:

6 meters: Refers to the vertical movement distance of the hook from the lowest position to the highest position. 6 meters is a common medium lifting height specification, suitable for a variety of plant environments. (Note: The actual available lifting height will be slightly less than 6 meters, and the space occupied by the hook group itself needs to be considered).



3. Core features of European design concept:

Compact structure and lightweight:

The use of high-strength alloy steel and optimized design significantly reduces the weight of the hoist body and the running trolley (if equipped).

The load-bearing requirements of the plant structure (such as the traveling beam) are reduced, saving construction costs.

Low clearance design: The drum and pulley group are compactly arranged, and the distance from the hook to the bottom of the hoist body (hook spacing) is smaller, maximizing the use of the plant height space.



High modular design:

Main components (motor, reduction box, reel, limiter, electric control box, etc.) adopt standardized module design.

Easy to install, disassemble, maintain and replace spare parts, greatly reducing downtime.

10ton 6m Single Girder Low Headroom Electric Wire Rope Hoist 0

Excellent safety and reliability:

Dual braking system: Usually equipped with independent mechanical brake (normally closed disc brake) and electromagnetic brake built into the motor (conical rotor or disc type), providing double safety protection, even if one fails, the other can still brake effectively.

Overload protection: Optional mechanical overload limiter or electronic weighing sensor can be used to prevent overload and protect the safety of equipment and personnel.

10ton 6m Single Girder Low Headroom Electric Wire Rope Hoist 1
