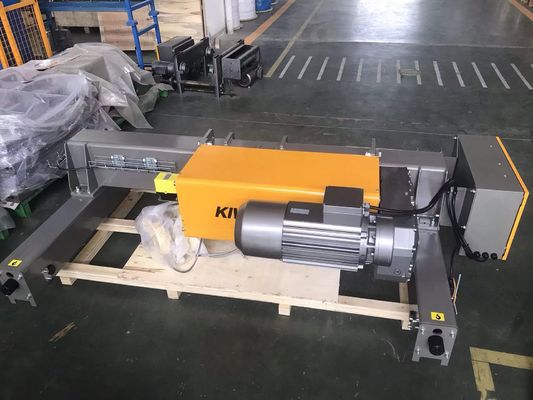

Radio Remote Control Double Girder Hoist Electric Wire Rope Hoist 5 Ton
  • Name
  • Name
  • Name
  • Name

Radio Remote Control Double Girder Hoist Electric Wire Rope Hoist 5 Ton

MOQ: 1
Price: USD2,500~25,000 one set
Standard Packaging: Wooden box packaging
Delivery Period: 15 working days
Payment Method: D/A,D/P,T/T,Western Union,MoneyGram
Supply Capacity: 5000sets one year
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
kiwicrane
Certification
ISO,CE
Model Number
VTW-D
Control Method:
Remote Control
Safety Features:
Overload Protection, Emergency Stop
Trolley Motor:
Inverter Control
Hoist Brake:
DC Magnetic Brake
Capacity:
5Ton
Power Source:
3Phase 220~460V 50/60Hz
Lifting Height:
6-30M
Working Class:
M5(2m)
Color:
Yellow（Customizable）
Sling Type:
Wire Rope
Package:
Wooden Box Packaging
Ttavel Speed:
0-20 M/Min
Lifting Speed:
0-12 M/Min
Highlight:

Radio Remote Control Double Girder Hoist

,

5 Ton Double Girder Hoist

,

5000kg electric wire rope hoist 5 ton

Product Description

                                              Double Girder Electric Wire Rope Hoist 5ton



      Euro-standard design double beam electric wire rope hoist, conformity of ISO and CE certificate



model   VTW-D 5T
SWL t 5
lifting height m 6-30
lifting speed m/min 0.8/5.0
travel speed m/min 5-20
power in V;HZ   220~460V 50/60Hz
FEM(GB) -- 2m(M5)
lifting motor power KW 1/6.1
RPM n/min 420/2840
insulation -- F
production -- IP55
duration -- 40%
rated current A 5.17/14.20
lift gear ratio -- 74.784
drum dia mm 190
wire rope -- 8-8*26(WS)+IWRC
travel motor power in KW 2*0.37
RPM n/min 133
insulation -- F
production -- IP55
duration --
rated current A 2.5
wheel dia mm 125



      1. Core parameters
Rated load: 5 tons (suitable for small and medium-sized material handling, design redundancy coefficient ≥ 1.25)
Lifting height: 9 meters (standard configuration, can be expanded according to needs)
Working level: M5 (suitable for medium-intensity work, daily average working cycle 2-4 hours)
Lifting speed: 5/0.8 m/min (can be equipped with variable frequency speed regulation, no-load high speed/load low speed switching)
Span range: typical double-beam span 7.5-28.5 meters (box-type main beam + end beam combination structure)



2.Lifting Motor
The compact wire rope hoist is designed according to FEM standards. The lifting drive adopts low noise, high efficiency, easy maintenance, aluminum three-stage parallel shaft gear reduction motor, which is directly installed on the drum. The high-power lifting motor with double-sided safety brake is available for users to choose from two options: double speed and variable speed. Chinese brand and SEW brand for option.



3. Wire Rope Drum
The drum is directly connected to the reducer, which makes the start-up smoother. One end of the drum is connected with the lifting reducer and motor, and works with the suspension device through the wire rope; the other end is equipped with a height limit device.The wire rope drum is equipped with a rope guide as standard to reduce wire rope damage during operation and extend the service life of the wire rope.



4. Hook Block
The hook is forged with special steel for hooks, and is connected to the outer shell through a thrust ball bearing through the hook crossbeam, so that the hook can operate freely. It is a double pulley type.



5. Traveling Mechanism
The electric trolley, running motor, running reducer, driven trolley, etc. together form the running mechanism, which drives the main machine to move through the frame. Its running speed is generally variable frequency dual speed 20/5m/min, and the wheel tread is a straight plane.
